AGNORA
Architectural Glass Lamination
Laminating architectural glass provides an effective, robust way to increase glass thickness and strength, and incorporate custom elements such as colour and tint. From structural windows, to stairways, to bridges, and art exhibits, laminated architectural glass finds its way into every aspect of our daily lives.
TAKE THIS PAGE WITH YOU.
Exceptional, world-class lamination facilities for architectural glass.
Specification
Metric Measurement
Imperial Measurement
Thickness
Minimum Dimension
Maximum Dimension
Maximum Weight
6mm to 80mm
100mm x 100mm
7620mm x 3300mm
2500Kg
1/4” x 3 5/32”
4” x 4”
300” x 130”
5500Lbs
Exceptional, world-class lamination facilities for architectural glass.
Safety & Security
Safety

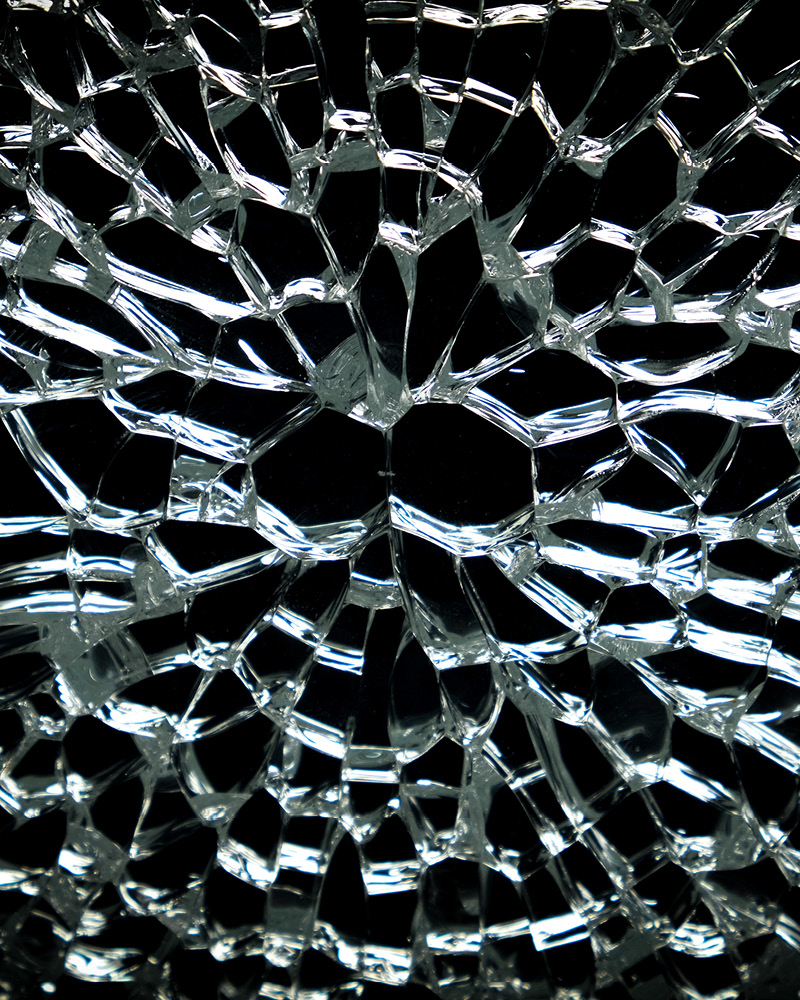

All interlayers provide an exceptional level of safety. Annealed glass, for instance, will break in large, sharp shards. However, lamination will hold these pieces together and provide enough support until a replacement lite can be installed. A prime example is your car windshield. Do you ever wonder why it doesn’t shatter when broken? That’s because of the high strength PVB interlayer holding it together.
In North America, ANSI Z97.1 is the standard describing the safety of laminates. As a rule of thumb, it takes at least 0.030” (0.76) mm of PVB to meet the Z97.1 standard, which AGNORA follows
Security
By combining layers of glass and interlayers, different levels of security can be achieved. Starting with resistance to a baseball bat hit to stopping Kalashnikov bullets. See our past article on storefront security.
UV, Solar and Structural Use
UV protection
A benefit of lamination is its ability to filter out harmful UV that can impact and fade surrounding furniture and objects. In fact, PVB or SentryGlas interlayers can reduce more than 98% of UV rays.
Solar protection
By embedding a solar control high-performance coating, you can obtain an excellent solar heat gain coefficient (SHGC). For example, a 3/8” / 0.030”/ PVB 3/8”– 1010.2 laminate can offer visible light transmission of 67% and a SHGC of 36%
Structural application
The advent of stiff interlayers like SentryGlas and DG-41 provide structural support for use in stairways, bridges, railings, and fins among other custom requirements. With a shear modulus that can be two orders of magnitude (100x) stiffer than traditional PVB, SentryGlas is an effective structural component.
UV, Solar and Structural Use
UV protection
A benefit of lamination is its ability to filter out harmful UV that can impact and fade surrounding furniture and objects. In fact, PVB or SentryGlas interlayers can reduce more than 98% of UV rays.
Solar protection
By embedding a solar control high-performance coating, you can obtain an excellent solar heat gain coefficient (SHGC). For example, a 3/8” / 0.030”/ PVB 3/8”– 1010.2 laminate can offer visible light transmission of 67% and a SHGC of 36%
Structural application
The advent of stiff interlayers like SentryGlas and DG-41 provide structural support for use in stairways, bridges, railings, and fins among other custom requirements. With a shear modulus that can be two orders of magnitude (100x) stiffer than traditional PVB, SentryGlas is an effective structural component.
Economically Thick Glass

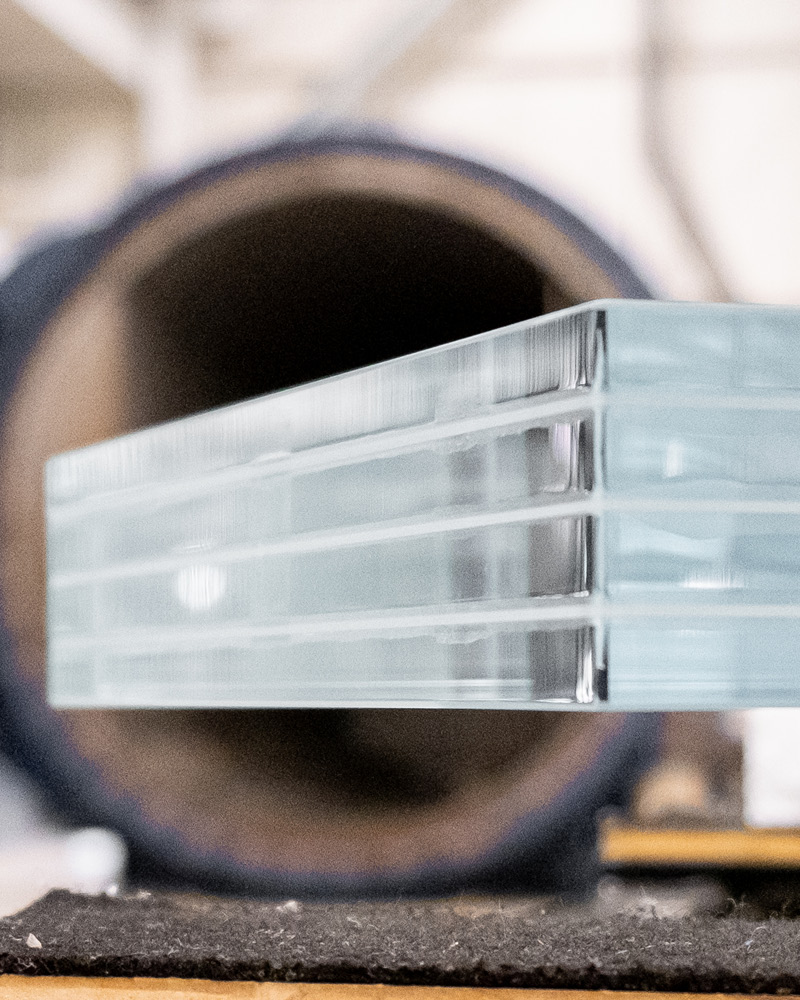

A substitute for thick, expensive monolithic glass
As glass increases in size, so does its thickness required to meet wind load conditions. Thick float glass (>1/2”-12 mm) costs more than its laminated equivalent. For example, a 3/4” – 19 mm Fully Tempered (FT) lite will cost 55% more than its annealed, laminated counterpart (3/8” / 0.030”/ PVB 3/8”– 1010.2). Using this combination is a clearly desirable solution as it also eliminates spontaneous breakage risks, optical distortions, and anisotropy.
The BIGgest Equipment, The Highest Quality
AGNORA is known for a lot of things. Things such as custom, high-quality glass, and precision workmanship. We’re also known for BIG glass, and as such our lamination line is the largest in North America, capable of handling glass 130” x 300” (3.3 x 7.6m) and thicknesses from ¼” to 4” (6mm to 100mm) (max weight per piece: 5500 Lb – 2500 kg).
This fully automated line cleans and prepares each glass lite within a temperature-controlled clean room. Operators are responsible for the final alignment and application of interlayers. From there, the freshly laminated glass “sandwich” is sent through an advanced nip process which heats and squeezes the laminate to expel trapped air.
Finally, AGNORA’s massive autoclave is used to fully heat and pressurize the glass in order to alleviate any remaining air, firmly cementing the interlayer to the glass substrate through 190 PSI (13 bar) of pressure and 275 °F (135 °C).
What's In Stock!
AGNORA stocks a host of interlayers as we assist clients to achieve different solutions dependent on their custom application. Our group of popular interlayers is listed below including their overall benefit and application
- PVB: An affordable safety interlayer. Will contain broken glass such as annealed, but lacks stiffness and may fail as a structure if broken
- SentryGlas®: A structural interlayer that is stiffer and more tear-resistant than PVB. This is an optimal solution for components that require extra strength and/or security. The stiffer interlayer not only resists deflection but in the event of breakage will better maintain its shape
- Vanceva Colour PVB – Do you need colour in your glass? AGNORA carries a broad range of Vanceva colour interlayers that can be mixed and matched to create striking, permanent visuals, including a range of whites. https://www.vanceva.com/color-selector
- DG41: Utilized for conditions that require more support than traditional PVB but do not require the full support of SentryGlas. DG41 also has a slight blue tint, that may or may not be preferred by the designer.
